Bugs in billions of WiFi, Bluetooth chips allow password, data theft

Researchers at the University of Darmstadt, Brescia, CNIT, and the Secure Mobile Networking Lab, have published a paper that proves it's possible to extract passwords and manipulate traffic on a WiFi chip by targeting a device's Bluetooth component.

- According to BleepingComputer

Multiple flaws in architecture and protocol

To exploit these vulnerabilities, the researchers first needed to perform code execution on either the Bluetooth or WiFi chip. While this is not very common, remote code execution vulnerabilities affecting Bluetooth and WiFi have been discovered in the past. Once the researchers achieved code execution on one chip, they could perform lateral attacks on the device's other chips using shared memory resources. In their paper, the researchers explain how they could perform OTA (Over-the-Air) denial of service, code execution, extract network passwords, and read sensitive data on chipsets from Broadcom, Cypress, and Silicon Labs.

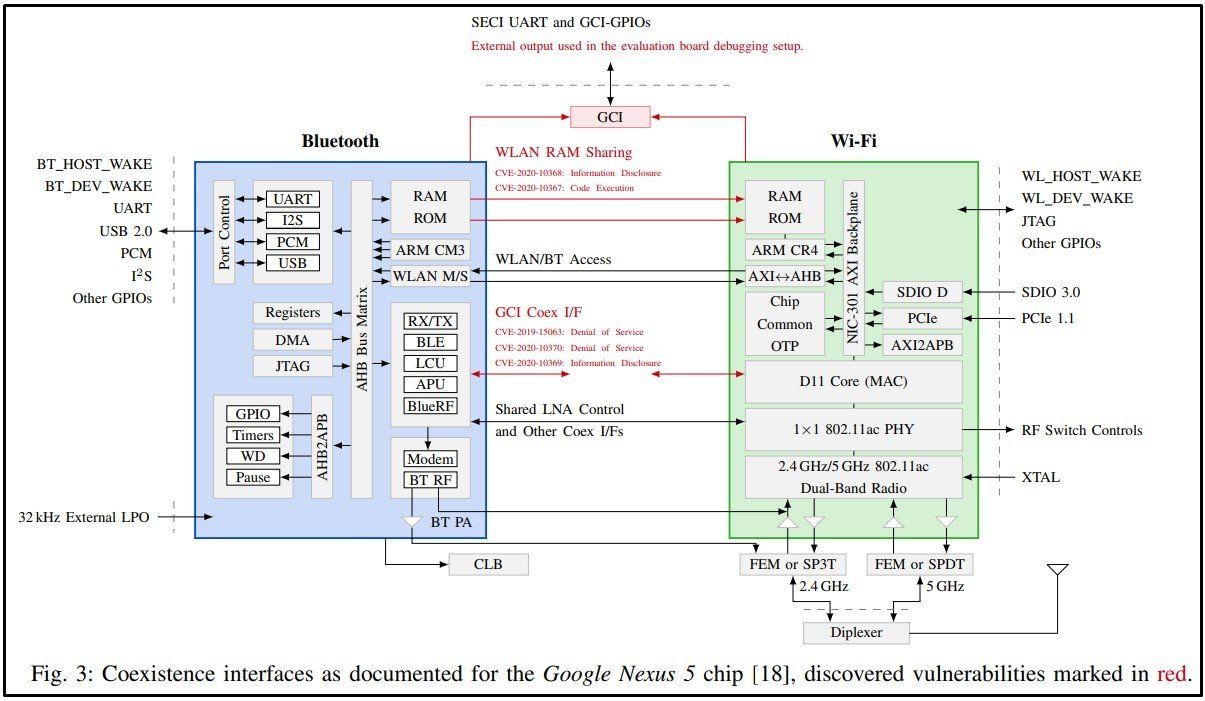

CVEs reserved for the particular threat model.
Source: Arxiv.org

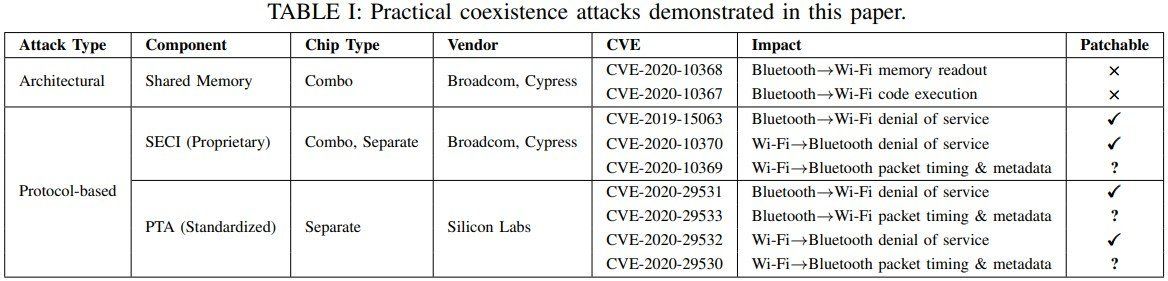

These vulnerabilities were assigned the following CVEs:

• CVE-2020-10368: WiFi unencrypted data leak (architectural)
• CVE-2020-10367: Wi-Fi code execution (architectural)
• CVE- 2019-15063: Wi-Fi denial of service (protocol)
• CVE-2020-10370: Bluetooth denial of service (protocol)
• CVE-2020-10369: Bluetooth data leak (protocol)
• CVE-2020-29531: WiFi denial of service (protocol)
• CVE-2020-29533: WiFi data leak (protocol)
• CVE-2020-29532: Bluetooth denial of service (protocol)
• CVE-2020-29530: Bluetooth data leak (protocol)

Some of the above flaws can only be fixed by a new hardware revision, so firmware updates cannot patch all the identified security problems. For example, flaws that rely on physical memory sharing cannot be addressed by security updates of any kind. In other cases, mitigating security issues such as packet timing and metadata flaws would result in severe packet coordination performance drops.

Impact and remediation

The researchers looked into chips made by Broadcom, Silicon Labs, and Cypress, which are found inside billions of electronic devices. All flaws have been responsibly reported to the chip vendors, and some have released security updates where possible. Many though haven't addressed the security problems, either due to no longer supporting the affected products or because a firmware patch is practically infeasible.

As of November 2021, more than two years after reporting the first coexistence bug, coexistence attacks, including code execution, still work on up-to-date Broadcom chips. Again, this highlights how hard these issues are to fix in practice.

Cypress released some fixes in June 2020 and updated the status in October as follows:

• They claim that the shared RAM feature causing code execution has only been "enabled by development tools for testing mobile phone platforms." They plan to remove stack support for this in the future.
• The keystroke information leakage is remarked as solved without a patch because "keyboard packets can be identified through other means."
• DoS resistance is not yet resolved but is in development. For this, "Cypress plans to implement a monitor feature in the WiFi and Bluetooth stacks to enable a system response to abnormal traffic patterns."

According to the researchers, though, fixing the identified issues has been slow and inadequate, and the most dangerous aspect of the attack remains largely unfixed.

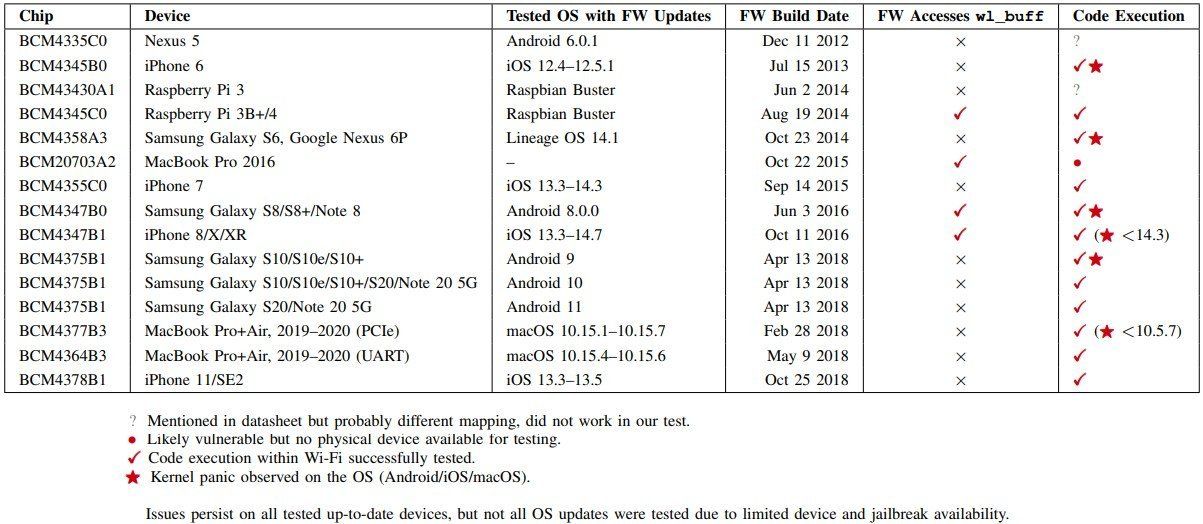

Devices tested by the researchers against CVE-2020-10368 and CVE-2020-10367
Source: Arxiv.org

According to the researchers, though, fixing the identified issues has been slow and inadequate, and the most dangerous aspect of the attack remains largely unfixed.

"Over-the-air attacks via the Bluetooth chip, is not mitigated by current patches. Only the interface Bluetooth daemon→Bluetooth chip is hardened, not the shared RAM interface that enables Bluetooth chip→WiFi chip code execution. It is important to note that the daemon→chip interface was never designed to be secure against attacks." - reads the technical paper.

"For example, the initial patch could be bypassed with a UART interface overflow (CVE-2021-22492) in the chip's firmware until a recent patch, which was at least applied by Samsung in January 2021. Moreover, while writing to the Bluetooth RAM via this interface has been disabled on iOS devices, the iPhone 7 on iOS 14.3 would still allow another command to execute arbitrary addresses in RAM."

In the meantime, and for as long as these hardware-related issues remain unpatched, users are advised to follow these simple protection measures:

• Delete unnecessary Bluetooth device pairings,
• Remove unused WiFi networks from the settings
• Use cellular instead of WiFi in public spaces.

Patching responses favor the more recent device models, so upgrading to a newer gadget that the vendor actively supports is always a good idea from the perspective of security.

Source: Bleeping Computer
